electric drive lifting system
Capable of lifting over 6000lb with just the push of a button, the X-drive is compatible with all of our Super X and Apex series struts and jacks.
Electric Drive Lifting System
X-Drive

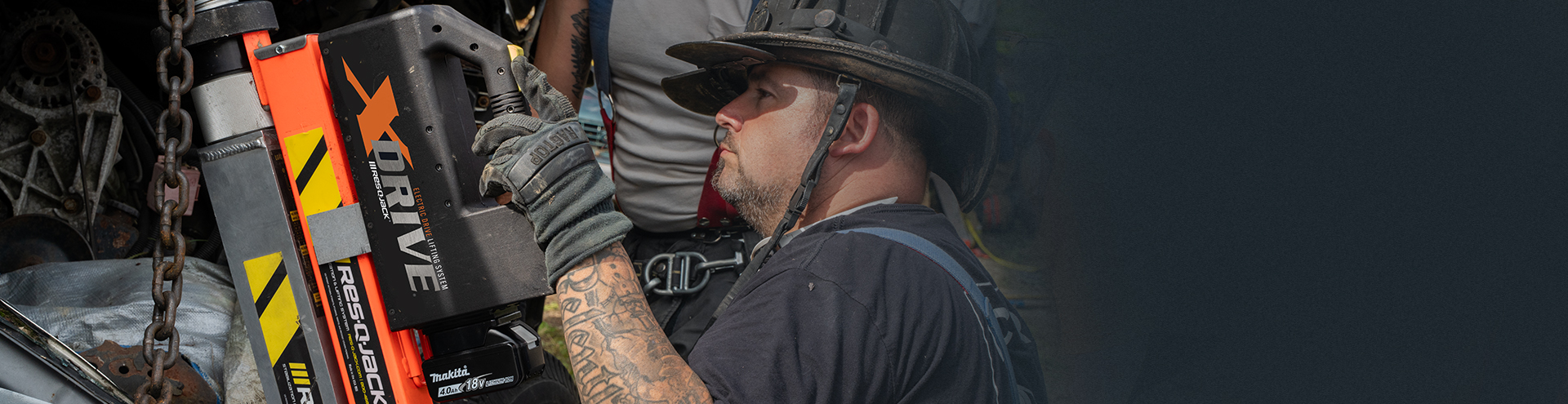

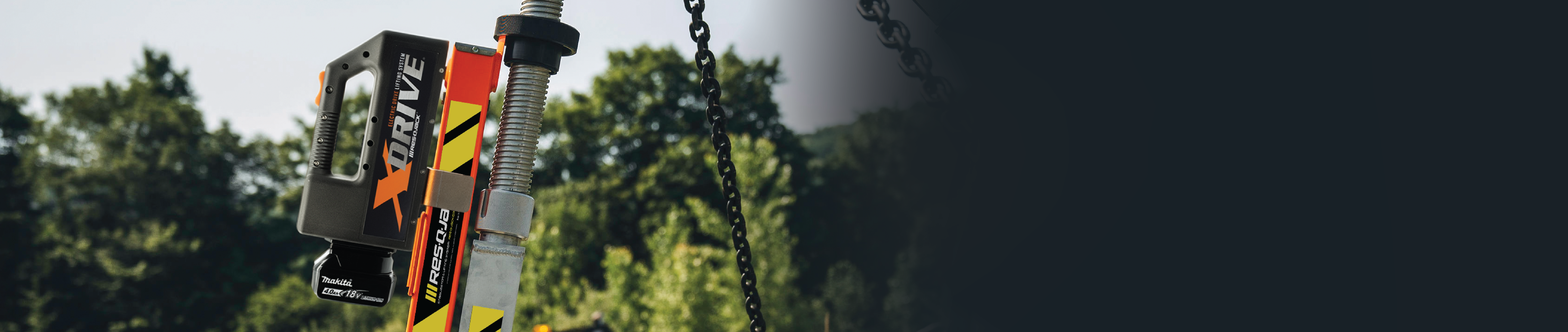

Introducing the X-Drive Electric Drive Lifting System—maximize lift, minimize effort with 6,000 lbs of power at the push of a button. Eliminate manual cranking and conserve strength for the life-saving tasks that matter most. Battery-powered for operational efficiency, IP54-rated for dust and water resistance, and built with a rugged PA12 housing and steel/aluminum frame, the X-Drive pairs with our Super X and Apex struts using the additional conversion kit*.
*Contact dealer for more information. Conversion kit not included with purchase of X-Drive.
Downloads
Specifications
Weight: 10.7 lb (21 kg)
Lift Rate: 5.5 in/min
Load Limit: 6000 lbs (2721 kgs)
Aluminum Frame
Stainless Steel Hardware
Item # XDR-MIL — compatible with Milwaukee 18V
Item # XDR-MAK— compatible with Makita 18V
Item # XDR-DEW— compatible with Dewalt 20V
(2:1 safety factor on Struts & Accessories)
Questions? Give us a call 1-800-466-9626
Benefits of X-Drive Electric Drive Lifting System
1. Compatible with Multiple Batteries
X-Drive is compatible with the following battery models: (not included)
Milwaukee 18V, Makita 18V, & Dewalt 20V.
2. Magnetic Hold to Jack
A strong magnetic connection keeps the X-Drive secure to the jack unit, to prevent accidental drops, and ensure a tight fit during deployment.
3. 5-watt Working-Area Lighting
When a battery is attached, 5 watt working-area LED lighting is engaged, allowing easy operation in the dark.
4. Jack Conversion Kit & Handle
Existing APEX and Super-X customers can easily convert their current jacks for X-Drive compatibility with our add-on conversion kit. The kit includes an additional handle for easy switching between manual and electric lifting, and must be purchased separately.
