electric drive lifting system
Capable of lifting over 6000lb with just the push of a button, the X-drive is compatible with all of our Super X and Apex series struts and jacks.
Electric Drive Lifting System
X-Drive
Introducing the X-Drive Electric Drive Lifting System—maximize lift, minimize effort with 6,000 lbs of power at the push of a button. Eliminate manual cranking and conserve strength for the life-saving tasks that matter most. Battery-powered for operational efficiency, IP54-rated for dust and water resistance, and built with a rugged PA12 housing and steel/aluminum frame, the X-Drive pairs with our Super X and Apex struts using the additional conversion kit*.
*Contact dealer for more information. Conversion kit not included with purchase of X-Drive.
Scaricamento
Specifiche tecniche
(In-house and third party tested)
X-Drive weight: 10.7 lb (4.8 kg). Lift rate: 5.5 in/min. Load limit: 6,000 lbs (2,721 kg). Constructed with aluminum frame and stainless steel hardware. See Technical Data Sheet for full specs.
Item # XDR-MIL — compatible with Milwaukee 18V
Item # XDR-MAK— compatible with Makita 18V
Item # XDR-DEW— compatible with Dewalt 20V
Domande? Chiamateci al numero 1-800-466-9626

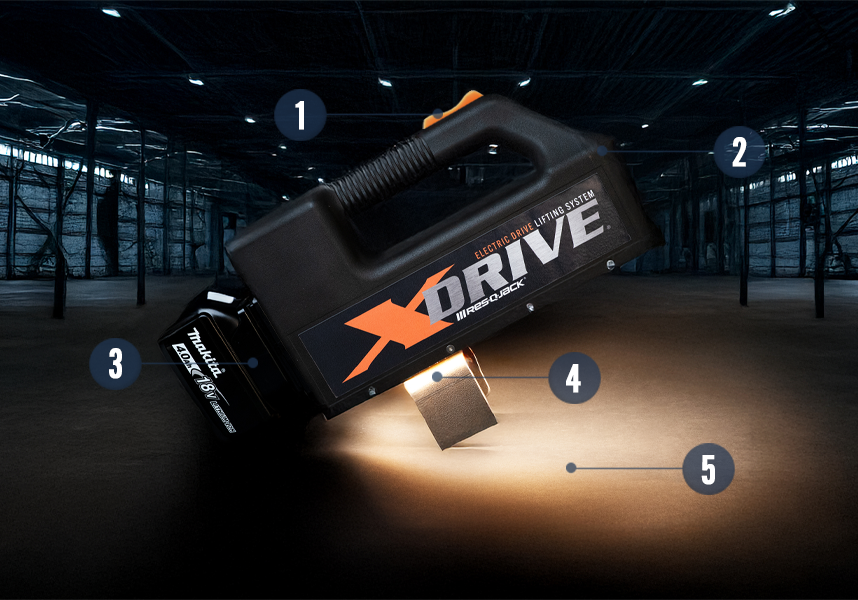

Benefits of X-Drive Electric Drive Lifting System
1. One-Touch Electric Lift Operation
Push-button electric operation replaces manual cranking, reducing strain and fatigue while preserving responder strength by eliminating repetitive physical effort.
2. Environmental Durability
IP54-rated and built with a rugged PA12 housing and steel/aluminum frame for dependable performance in wet, dusty, and demanding field environments.
3. Compatible with Multiple Batteries
X-Drive is compatible with the following battery models (not included): Milwaukee 18V, Makita 18V, & Dewalt 20V.
4. Magnetic Hold to Jack
A strong magnetic connection keeps the X-Drive secure to the jack unit, to prevent accidental drops, and ensure a tight fit during deployment.
5. Integrated LED Lighting
When a battery is attached, integrated 5-watt LED work-area lighting activates, providing clear visibility for operation in low-light and dark environments.

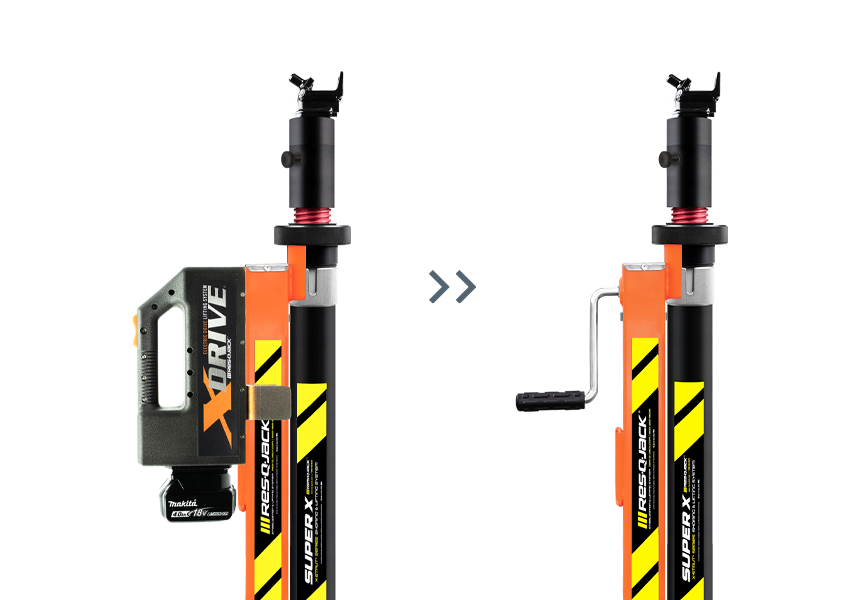

6. Return to Manual Cranking

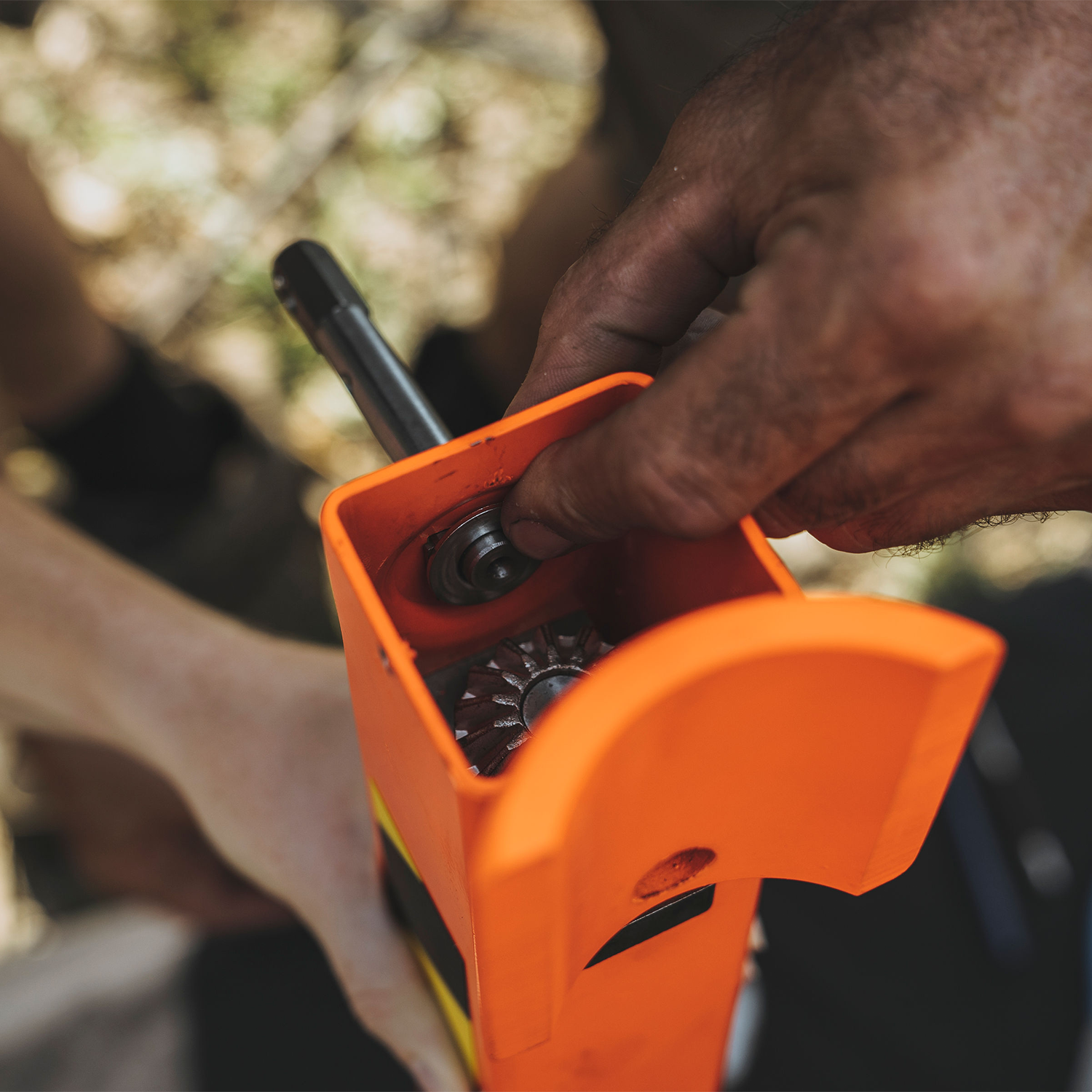

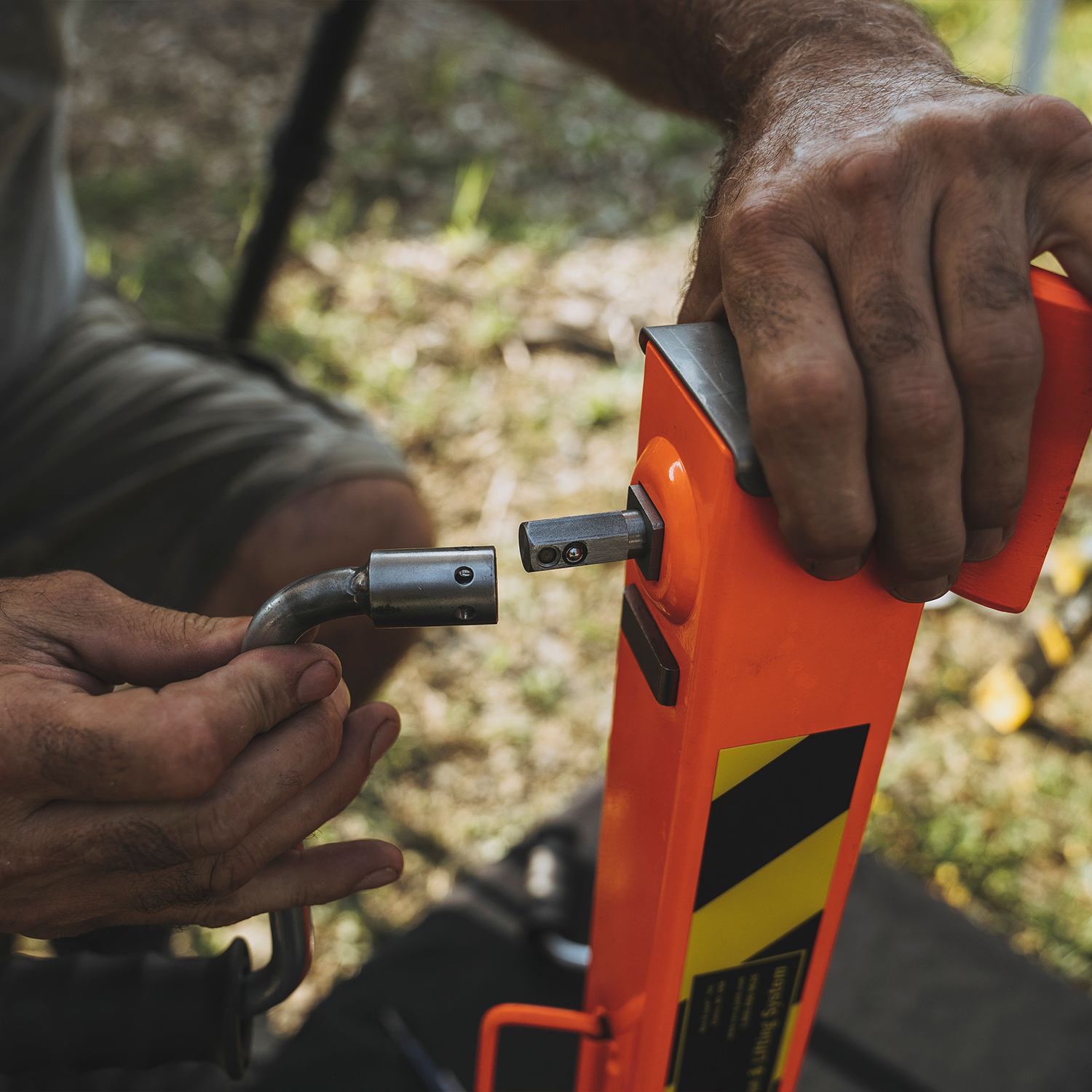

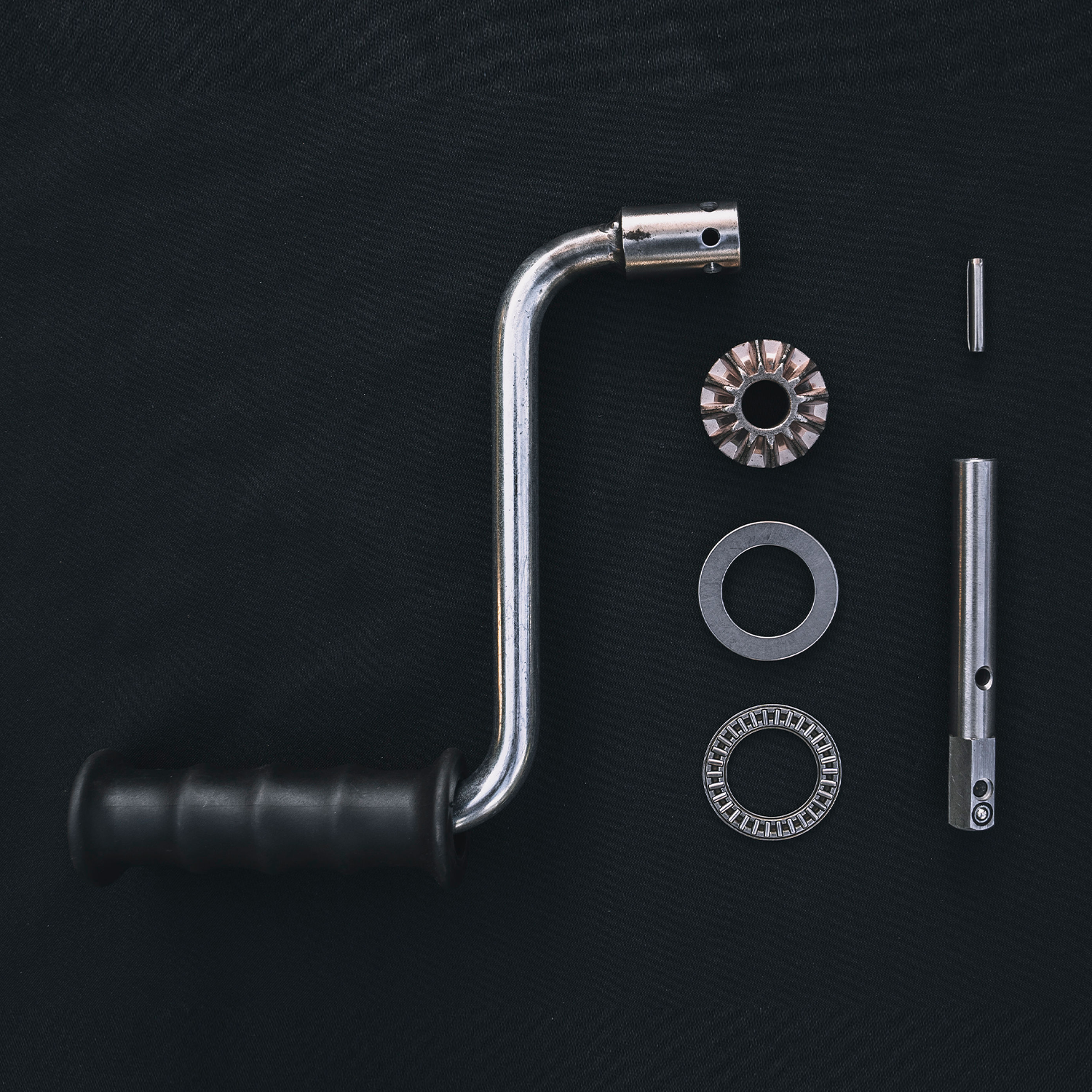

The X-Drive can be quickly pulled from the jack, allowing transition between electric drive operation and manual cranking as needed. The conversion kit is used to reinstall the handle when returning to manual operation. The conversion kit is included when purchasing a jack with X-Drive. Existing Super X and APEX users purchasing X-Drive will need to purchase the conversion kit separately.
