Aluminum X-Strut Heavy-Duty Vehicle Stabilization & Lifting Strut

Heavy-Duty Vehicle Stabilization & Lifting Strut

Our heavy-duty lightweight vehicle stabilization struts have rated lifting loads up to 6,000 lbs. and span lengths from 40" to 98".

Aluminum X-Strut Series Heavy-Duty Pinned Vehicle Stabilization Strut

Heavy-Duty Struts

Aluminum X-Strut® Heavy-Duty Stabilization & Lifting Strut

The Aluminum X-Strut® is our most popular pinned stabilization and lifting strut, built from 6061-T6 aluminum and boasting close to a 10,000 working load limit with a 2:1 Safety Factor, without adding significant weight. This workhorse of a strut is designed for heavy vehicle stabilization and lifting applications. We recommended the Aluminum X-Strut® for departments who see a lot of highway responses involving larger vehicles, or for those who want the added security of a heavy-duty strut.

  • Downloads

  • Technical Data Sheet (190KB)

  • Quick Reference Guide (13MB)

  • Product Catalog (8MB)

  • Specifications

Column WLL
9,700 lbs.
9,700 lbs.
Lifting WLL
6,000 lbs.
6,000 lbs.
Extended Height
66"
66"
Collapsed Height
40"
40"
Weight
30 lbs*
30 lbs*
Column WLL
9,700 lbs.
9,700 lbs.
Lifting WLL
6,000 lbs.
6,000 lbs.
Extended Height
98"
98"
Collapsed Height
56"
56"
Weight
42 lbs*
42 lbs*
Column WLL
9,700lbs.
9,700lbs.
Lifting WLL
6,000 lbs.
6,000 lbs.
Extended Height
86.25"
86.25"
Collapsed Height
50"
50"
Weight
37 lbs*
37 lbs*

(2:1 safety factor on Struts & Accessories)

Strut weight includes Swivel CRG Head Fitting, Base Plate, Ratchet Strap and all hardware. Short Strut does not include Built-In Ratchet Strap. Add-On Jack weight: 25 lbs. See Technical Data Sheet for full specs.

Questions? Give us a call 1-800-466-9626

Benefits of a Res-Q-Jack® brand Aluminum X-Strut® Heavy-Duty Stabilization & Lifting Strut
Aluminum X-Strut® Heavy-Duty Stabilization & Lifting Strut

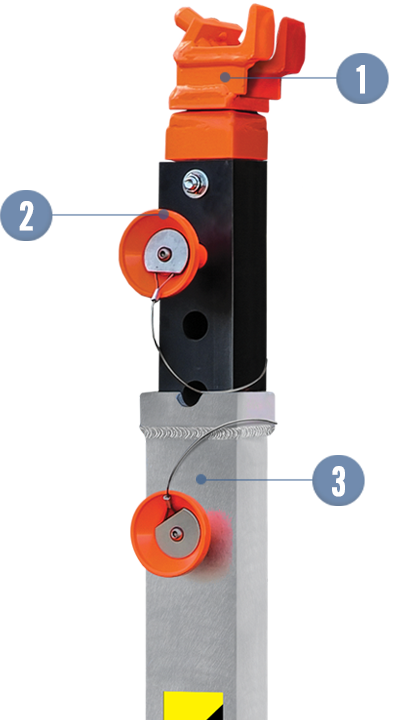

1. Swivel CRG Head Fitting

The Aluminum X-Strut® includes our Swivel CRG head fitting which rotates 360° to easily find any purchase point.

2. Oversized Cone Pins

The Aluminum X-Strut® operates with our custom-manufactured oversize cone pins.  The special flared-design automatically aligns with the jack for faster setup.  The unique shape also makes these pins easier to grip and harder to lose.

3. Aluminum Construction

The Aluminum X-Strut® is built from 6061-T6 aluminum for extra strength without adding significant weight.

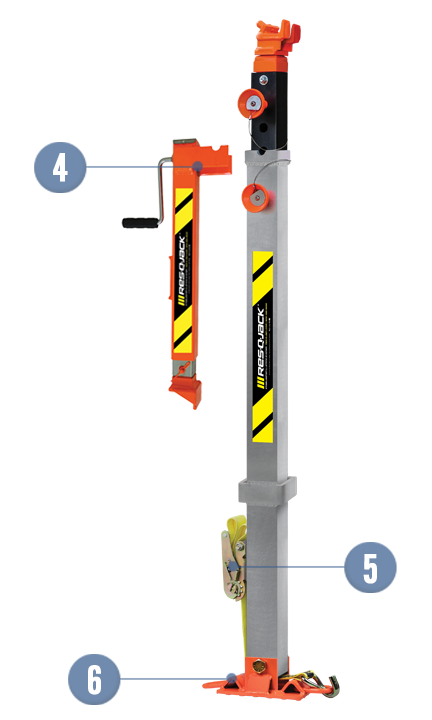

4. X-Strut® Lifting Power

The Aluminum X-Strut®  transforms from a shoring strut to a lifting strut in seconds with our removable mechanical Add-On Jack, giving you 6,000 lbs. of lifting capacity with 12 inches of travel.  Need to lift more than a foot in height?  Just remove the Add-On Jack and reset for 12 more inches of lift.

5. On-Board Ratchet Strap

The Aluminum X-Strut® and Phoenix Aluminum X-Strut® each include a ratchet strap with wire hooks mounted on the side of the strut chassis, keeping your strap right where you want it for faster response.

6. Base-Mounted D-Rings

Pivoting rings built into the base plate allow for fast attachment of straps, hooks and chains, or double as a picket receiver when anchoring is needed.

Aluminum X-Strut® Heavy-Duty Stabilization & Lifting Strut
